Lay-Down Low-EMF Infrared Sauna with Split Heater Zones CSA-786
CSA-786 is a factory model reference for buyers comparing lay-down low-emf infrared sauna room, material direction, heater configuration, packaging, and project fit before quotation.
| Model code | CSA-786 |
|---|---|
| Product type | Lay-down low-EMF infrared sauna room |
| Capacity | 2 person lay-down direction |
| Use setting | Indoor home, hotel, rehabilitation, showroom, or wellness project |
| Wood / finish | Hemlock or red cedar direction with two recliner-style bench positions |
| Heater | Low-EMF far-infrared zones with controller, sensor, and electrical route confirmed by market |
| Glass / door | Confirm door direction, glass layout, and opening side before production. |
Use CSA-786 as the visual model reference. Final size, bench layout, heater, glass, voltage, packing, and document route are locked after the approved drawing.
Buyer fit
Indoor sauna dealers, wellness showrooms, apartment projects, and distributor sample programs.
Use CSA-786 when discussing quantity, destination, heater option, and private-label requirements.
Quote direction
Confirm voltage, control panel, heater layout, glass, carton packing, certificates, and private-label requirements.
Final price and lead time are based on the approved size, packing, documents, and order record.
Production handoff
Before production, CSauna confirms drawing, door direction, heater position, glass, accessories, labels, and packing details.
Known model facts
- Model code: CSA-786
- Product family: Lay-down low-EMF infrared sauna room
- Capacity direction: 2 person lay-down direction
- Wood direction: Hemlock or red cedar direction with two recliner-style bench positions
- Heater direction: Low-EMF far-infrared zones with controller, sensor, and electrical route confirmed by market
- Image set: 6 factory reference views
Confirm before order
- Final exterior size and bench layout
- Heater type, voltage, controller, and clearance
- Door/glass direction and finish details
- Carton/crate packing, labels, manuals, and spare parts
Order details CSauna checks before quotation
CSA-786 is kept as a model reference, not a fixed retail SKU. Before quoting, our sales and design team match the visual direction with the buyer’s destination market, electrical standard, material preference, packing method, and order quantity. This prevents a buyer from comparing only the first unit price while missing voltage, heater clearance, wood grade, glass direction, carton or crate packing, certification support, labels, manuals, and spare-parts scope.
For importer, dealer, hotel, gym, resort, and private-label orders, the same model code can lead to different production files. CSauna records the buyer’s preferred wood species, surface finish, roof protection, glass tone, door direction, bench length, heater brand, controller location, accessory list, carton label, manual language, and loading plan before the final quotation is locked.
| Electrical route | 110-120V, 208V, 220-240V, or 380-415V can be reviewed by market when the model uses an electric heater. Heater kW, controller position, cable exit, and clearance are confirmed before production. |
|---|---|
| Material route | Red cedar, hemlock, thermo wood, spruce, pine, cedar, or project-confirmed wood can be compared by budget, outdoor exposure, surface tone, and buyer file requirements. |
| Commercial scope | MOQ is normally handled as 1 set sample order or 2 sets distributor start. Private-label work can include logo, package label, manual, SKU mix, and model revision notes. |
| Shipment file | Before handoff, CSauna confirms crate or carton packing, loading notes, destination port, accessory list, certificate support, and spare parts for the selected model direction. |
CSA-786 design and production review
The important feature in CSA-786 is the lay-down arrangement rather than a conventional upright bench. The design department checks usable body length, shoulder width, recliner angle, leg support, access between the two positions, door clearance, and the heater coverage along the back, side, calf, and foot zones. Low-EMF wording is kept as a specification to verify on the ordered electrical package, not as an unsupported claim copied from a reference image.
Order-release checks for this model
The buyer approves the intended user profile, required seat movement, upholstery or removable pad scope, cleaning access, and the space available around the cabinet. The production file then lists the emitter type, position, rating, controller channel, connector location, service path, tested voltage, total power, sensor, lighting, audio option, and cable exit. If low-EMF evidence is required, the order record states the requested measurement condition, test point, acceptable report format, and whether third-party documentation is needed. Inspection covers seat movement and locking, bench load, every heater zone, controller and sensor response, door alignment, ventilation, finish, and carton identification. Replacement heater and control references are kept in the dealer handoff file.
| Lay-down geometry | Approve usable length, seat width, recliner angle, leg support, movement range, aisle, door opening, user entry, cleaning access, and service clearance. |
|---|---|
| Low-EMF evidence | Define emitter construction, requested measurement method, test distance, operating condition, report format, controller version, and destination compliance scope. |
| Service package | Provide numbered panels, connector map, zone test sheet, manual language, heater and controller references, carton sequence, replacement parts, and agreed spares. |
For Lay-Down Low-EMF Infrared Sauna with Split Heater Zones, the final drawing, electrical schedule, packing list, labels, manuals, certificates, and spare-parts scope must carry the same CSA-786 reference.

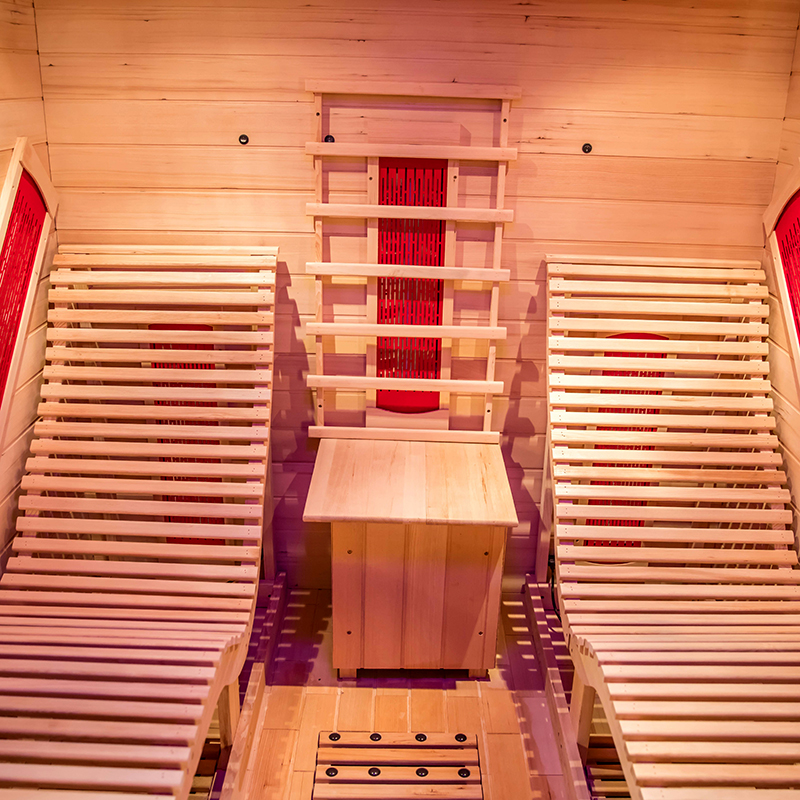

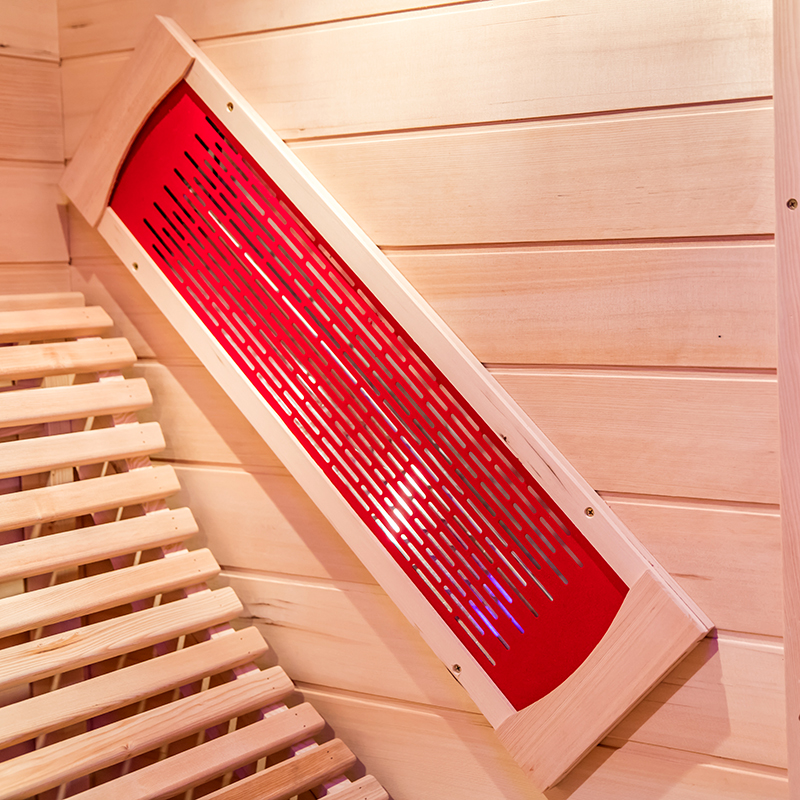

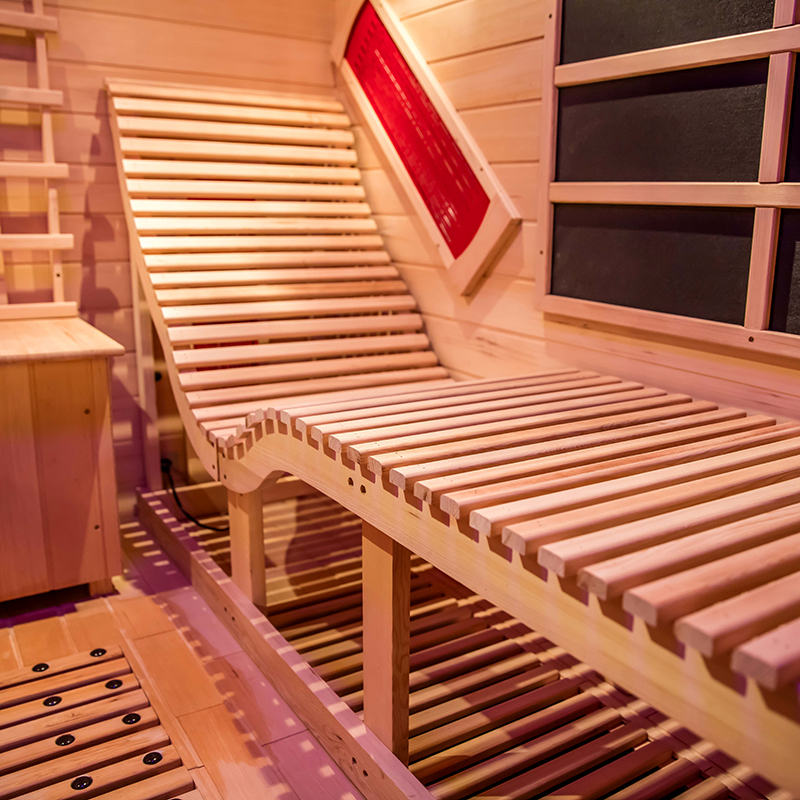

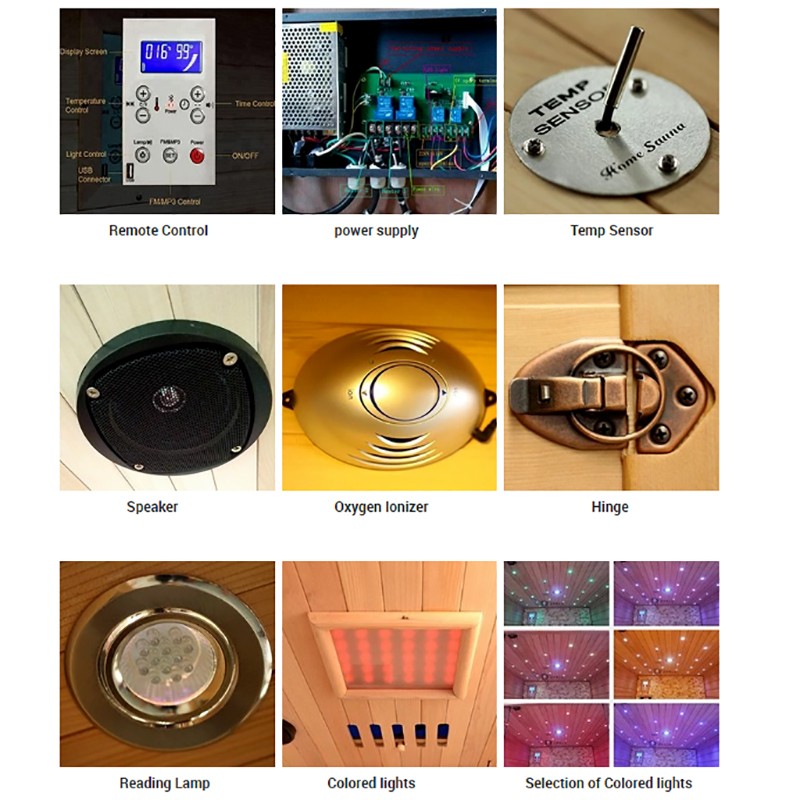

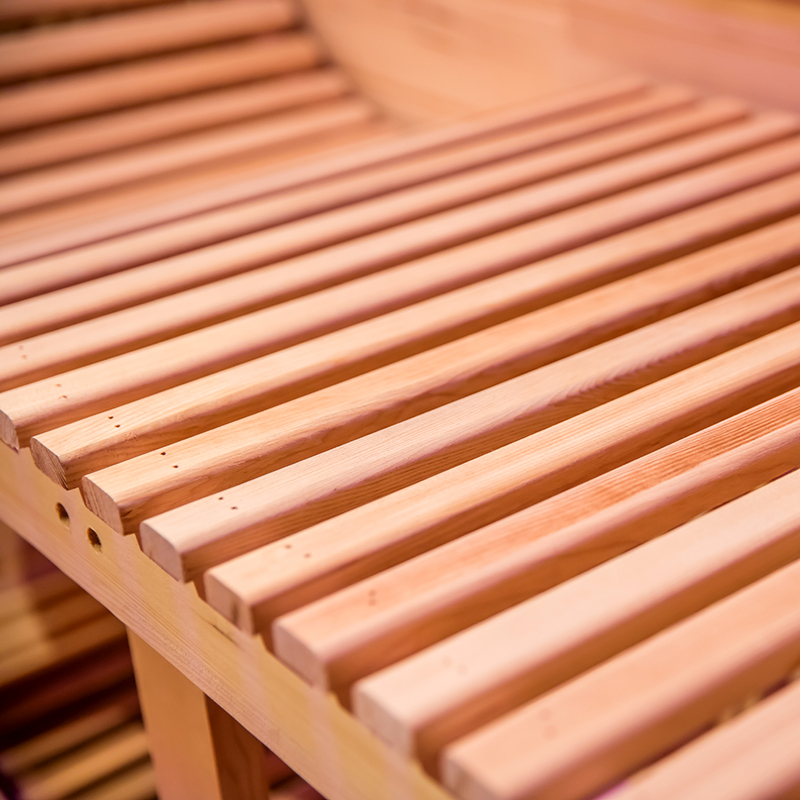

Six reference views for buyer review
